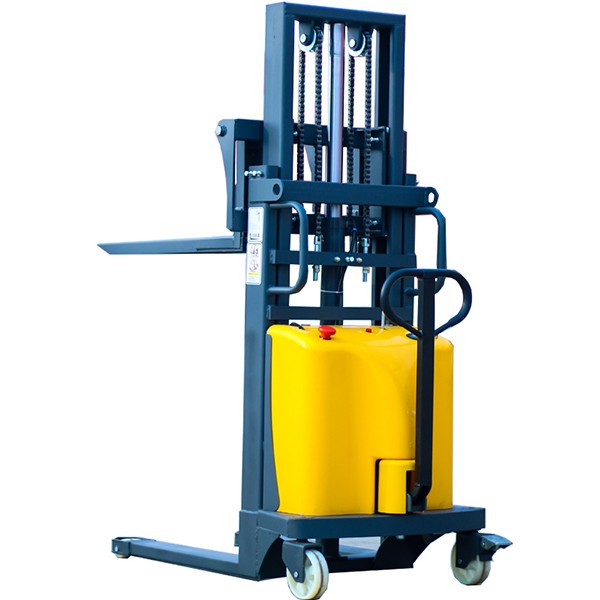

semi-electric pallet stacker uses electric lifting, since the goods are easily up to the desired height, considerable savings in labor, improve working efficiency; in transshipment cargo, the use of high-strength wear-resistant and long handle of the sprocket wheel steering system, steering flexible, operation easy, especially for vehicles loading and unloading and workshops, warehouses, railway stations and other venues, indoor and outdoor operation. Because the product does not emit fumes, and is pollution-free, low noise, therefore it is particularly suitable for warehouse, textile, food, chemical and pharmaceutical areas, both for indoor and outdoor operation.
Product Parameters
Specification | Measurement | CTD | ||||
Capacity | Kg | 1000 | 1500 | 2000 | ||
Max Height (H) | mm | 1600, 2000, 2500, 3000, 3500, 4000 | ||||
Load Center (C) | mm | 500 | ||||
Min Height (H) | mm | 85 | ||||
Length of Fork (L) | mm | 1000 | ||||
Width of Fork (W3) | mm | 680 | ||||
Distance of Land | mm | 25 | ||||
Max Lift Speed Without Load | mm/s | 90±10% | ||||
Max Lift Speed With Load | mm/s | 60 | ||||
Max Down Speed With Load | mm/s | ≤280 | ||||
Minimum Outside Turning Radius r | mm | 1500 | ||||
Rear Wheel size (d1) | mm | φ80×70 | φ80×93 | |||
Front Wheel Size (d2) | mm | φ180×50 | ||||
Overall Length ( L1) | mm | 1700±20 | ||||
Overall Width (W) | mm | 800 | ||||
Overall Height (H1) | mm | overall height with the maximum lifting height is related in the table below | ||||
Battery Voltage -Capacity | Single Frame 12V-100Ah | Double Frame12V-120Ah | ||||
Automatic Charger | Ac220V/50Hz-Dc12V/20A | |||||
Improve Motor | KW | DC24V-1.6KW | ||||
Gear Pump | ml/r | CBWn-F2.0 | ||||
Self Weight of Battery (±5%) | Kg | 12V-100A Weight 28 / 12V-120A Weight 35 | ||||
Self Weight(Without Battery) | Kg | 312/325/340/355/370 | 387/405/425/445/465 | 397/415/435/455/475 |
